A grout diagram is your project’s secret weapon, a clear plan showing exactly where and how grout will be applied. It ensures a professional, seamless finish every time, preventing common mistakes and making your DIY tiling look amazing.
Tiling a space can feel like a big job, and you might be wondering about the final touches. One of those crucial steps involves grout. It’s the stuff that fills the gaps between your tiles, not just for looks but also for keeping things solid and water-tight. But how do you ensure your grout job is neat, even, and effective? That’s where a grout diagram comes in, and it’s simpler than you think! Don’t worry if this sounds technical; we’re going to walk through it together, making sure your projects turn out beautifully and without stress. Get ready to transform your space with confidence!
What is a Grout Diagram and Why Do You Need One?
Think of a grout diagram as the blueprint for your grout. It’s a visual guide that shows where the grout lines will go, their intended width, and sometimes even the color you’ll be using. It’s super helpful for larger or more complex tile layouts, ensuring consistency across your entire project. Without one, you risk uneven grout lines, mismatched sections, or even skipping areas that desperately need the grout’s protective qualities.
The Benefits of Using a Grout Diagram
Using a grout diagram before you even open a bag of grout offers a surprising number of advantages:
Visualizes the End Result: You get a clear picture of what your finished project will look like.
Ensures Consistency: Guarantees uniform grout line width and spacing, crucial for a professional appearance.
Prevents Mistakes: Helps avoid missing spots or applying grout where it’s not needed, saving time and materials.
Aids in Material Calculation: You can better estimate the amount of grout needed, reducing waste.
Guides Complex Layouts: Essential for intricate patterns, mosaics, or irregularly shaped tiles.
Communicates Your Vision: If you’re hiring someone, it’s a clear way to show them exactly what you want.
Understanding Key Grouting Terms
Before we dive into creating your diagram, let’s clarify a few terms you might encounter. Knowing these will make the process much smoother:
Grout: The material used to fill the spaces between tiles. It can be cement-based, epoxy, or urethane, and comes in various colors.
Grout Line: The gap or space between adjacent tiles.
Grout Width: The consistent thickness of the grout line.
Grout Color: The shade of the grout, which significantly impacts the overall look of the tiled area.
Tile Spacer: Small plastic or rubber pieces inserted between tiles during installation to ensure uniform spacing for grout lines.
Grout Float: A specialized tool with a rubber pad used to spread and press grout into the gaps.
Grout Saw/Scraper: Tools used to safely remove old, damaged grout before applying new grout.
When is a Grout Diagram Most Important?
While helpful for any tiling project, a grout diagram is particularly essential in these situations:
Large Areas: Tiling a whole kitchen backsplash, a large bathroom floor, or an entire shower enclosure.
Complex Patterns: Herringbone, subway tile with a specific offset, intricate mosaics, or geometric designs.
Differing Tile Sizes: If you’re mixing tile sizes or using trim pieces, a diagram helps plan the transitions.
High-Moisture Areas: For bathrooms and kitchens, ensuring proper grout coverage is vital for preventing water damage.
Sharp Enclosures or Niches: Planning grout lines around doorways, windows, or built-in shelves.
When Using Contrasting Grout: If you’re using a grout color that stands out against your tiles, a diagram helps you visualize and plan those lines perfectly.
Even for simpler projects, sketching out your grout lines can give you that extra peace of mind.
How to Create Your Grout Diagram: A Step-by-Step Guide
Creating your own grout diagram is straightforward. You don’t need fancy software – a pencil and paper will do!
Step 1: Gather Your Information
Before you sketch, collect the details of your tiling project:
Dimensions of the Tiled Area: Measure the length and width of the wall or floor you’re tiling.
Tile Dimensions: Know the exact size of your tiles (e.g., 12×12 inches, 3×6 inches).
Intended Grout Line Width: Decide how wide you want your grout lines to be. Common widths range from 1/8 inch to 3/8 inch, depending on the tile and desired look. For a more modern, seamless look, narrower lines are preferred. For handmade or uneven tiles, wider lines can accommodate variations.
Tile Layout: How will the tiles be arranged? Straight lay, staggered/brick pattern, subway pattern, diagonal, herringbone?
Starting Point: Where will your first tile go? Usually, it’s the center of the wall or floor for the most balanced look.
Step 2: Sketch the Area
On a piece of paper, draw a rough outline of the space you’re tiling. You don’t need to be an artist; simple rectangles and squares will do. Label the dimensions.
Step 3: Lay Out Your Tiles on Paper (or Digitally)
This is the core of creating your diagram.
Scale: You don’t need to draw to perfect scale, but try to keep your tile and grout line representations roughly proportional.
Placement: Start placing your “tiles” within the outlined area.
Grout Lines: Draw lines between your tiles representing the grout lines. Pay close attention to your chosen tile layout.
Consistency is Key: Ensure the space between each “tile” is consistent for your grout line width.
Example Scenario: A 4ft x 6ft Wall with 12″x12″ Tiles in a Straight Lay
1. Area: Draw a rectangle representing 48 inches (width) by 72 inches (height).
2. Tiles: Imagine placing 12″x12″ tiles. You can fit 4 tiles across (48 inches / 12 inches = 4 tiles). You can fit 6 tiles down (72 inches / 12 inches = 6 tiles).
3. Grout Lines: Now, add lines between these tiles. If you’re aiming for a 1/4 inch grout line:
Across (Width): You have 4 tiles, which means you need 3 grout lines between the tiles. You also need to consider the spaces at the edges. If you’re centering them so there’s an equal grout line or partial tile at each edge, that changes the calculation slightly. For simplicity, let’s consider the lines between.
Down (Height): You have 6 tiles, meaning you need 5 grout lines between them.
4. Sketching:
Draw your 4ft x 6ft rectangle.
Divide it into a 4×6 grid.
Draw 3 vertical lines within the grid, spaced to represent tiles plus grout.
Draw 5 horizontal lines within the grid, spaced to represent tiles plus grout.
Indicate their width (e.g., “1/4 inch”).
If you plan to have a grout line or cut tile at the edges, mark that too. A common practice is to center the layout. If you have exactly 4 tiles for the width (48 inches), and each is 12 inches, that leaves no room for edge grout lines unless you adjust tile sizes slightly or use very thin lines. This is where the diagram helps you see it before you cut anything.
Let’s consider a more realistic scenario where you might need to adjust. For a 48-inch width with 12-inch tiles, you’d ideally want 4 tiles. If you want a 1/4-inch grout line between them, that’s 3 lines x 1/4 inch = 3/4 inch of grout. 4 tiles x 12 inches = 48 inches. Total space needed: 48 + 0.75 = 48.75 inches. If your wall is exactly 48 inches, you’d need to shave about 1/16th of an inch off each tile or have slightly thinner grout lines. Your diagram helps you spot this!
Step 4: Mark Critical Areas and Transitions
Use your diagram to highlight:
Corners: How will grout lines meet in internal and external corners?
Edges: Where will grout lines end at walls or fixtures?
Obstructions: Around outlets, pipes, or door frames.
Transitions: If you’re changing tile patterns or using different tile sizes.
Step 5: Specify Grout Color and Type (Optional but Recommended)
If you have a specific grout color in mind, note it on your diagram. You can even sketch small swatches of tile color and grout color next to each other. Note the type of grout (sanded, unsanded, epoxy) as this depends on grout line width.
Unsanded Grout: For very narrow grout lines (typically less than 1/8 inch).
Sanded Grout: For wider grout lines (typically 1/8 inch and up).
Epoxy Grout: Durable and stain-resistant, suitable for both narrow and wide lines but more challenging to work with.
Tools to Help with Your Diagramming
Graph Paper: Perfect for sketching layouts with proportional lines.
Rulers and Measuring Tapes: For accurate measurements.
Pencils and Erasers: For easy corrections.
Tiling Estimator Tools (Online): Many tile manufacturer websites have tools that can help you visualize layouts and calculate quantities, which can inform your diagram.
Tiling Software/Apps: For complex projects, there are design apps that allow you to create detailed plans.

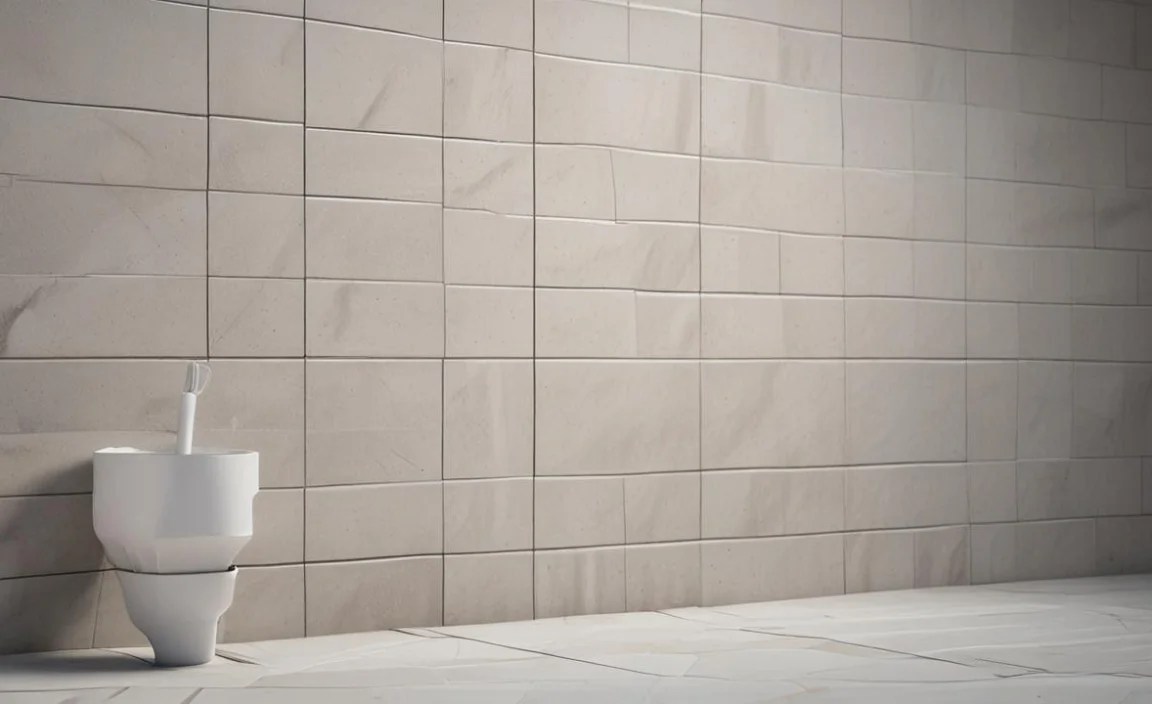

Grout Line Widths and Aesthetics
The width of your grout lines can dramatically change the look of your tiled surface. There’s no single “right” answer; it often comes down to personal preference and the type of tile you’re using.
Here’s a quick guide:
| Grout Line Width | Typical Tile Type | Aesthetic Effect | Notes |
| :————— | :—————————— | :————————————————- | :———————————————————————————————————— |
| 1/16″ – 1/8″ | Large format, rectified tiles | Modern, seamless, minimalist, “floating” appearance | Best for tiles with perfectly straight edges (rectified). Requires precise tile installation. Use unsanded grout. |
| 1/8″ – 3/16″ | Standard ceramic/porcelain tiles | Clean, classic, provides subtle definition | A very common and versatile choice. Can use sanded or unsanded, depending on exact width. |
| 3/16″ – 3/8.75″ | Handmade, natural stone, uneven | Rustic, traditional, highlights tile uniqueness | Accommodates slight variations in tile edges. Can draw attention to the tile pattern. Use sanded grout. |
Your grout diagram is the perfect place to sketch out these different considerations and visualize how a particular width will look with your chosen tiles.
Common Grout Diagram Pitfalls and How to Avoid Them
Even with a plan, things can go awry. Here are common mistakes and how your diagram helps prevent them:
Pitfall 1: Uneven Grout Lines
Problem: Some lines are wider than others, making the tile job look amateurish.
Diagram Solution: Your diagram forces you to think about consistent spacing. When tiling, use appropriate tile spacers of the width you’ve diagrammed.
Pitfall 2: Cutting Tiles Incorrectly at the Edges
Problem: You get to an edge and realize your last tile is a tiny sliver or barely a cut.
Diagram Solution: By mapping out the whole area, including edges, you can see if the layout naturally ends with full tiles, appropriately sized cuts, or if you need to adjust your starting point or grout line width slightly for a more balanced look. Many DIYers, myself included, prefer to have symmetrical cuts or grout lines on opposing edges.
Pitfall 3: Forgetting About Obstacles
Problem: You grout right up to a faucet or countertop edge, making finishing difficult or messy.
Diagram Solution: Mark all outlets, fixtures, pipes, and edges on your diagram. Plan how your grout lines will neatly terminate around these features.

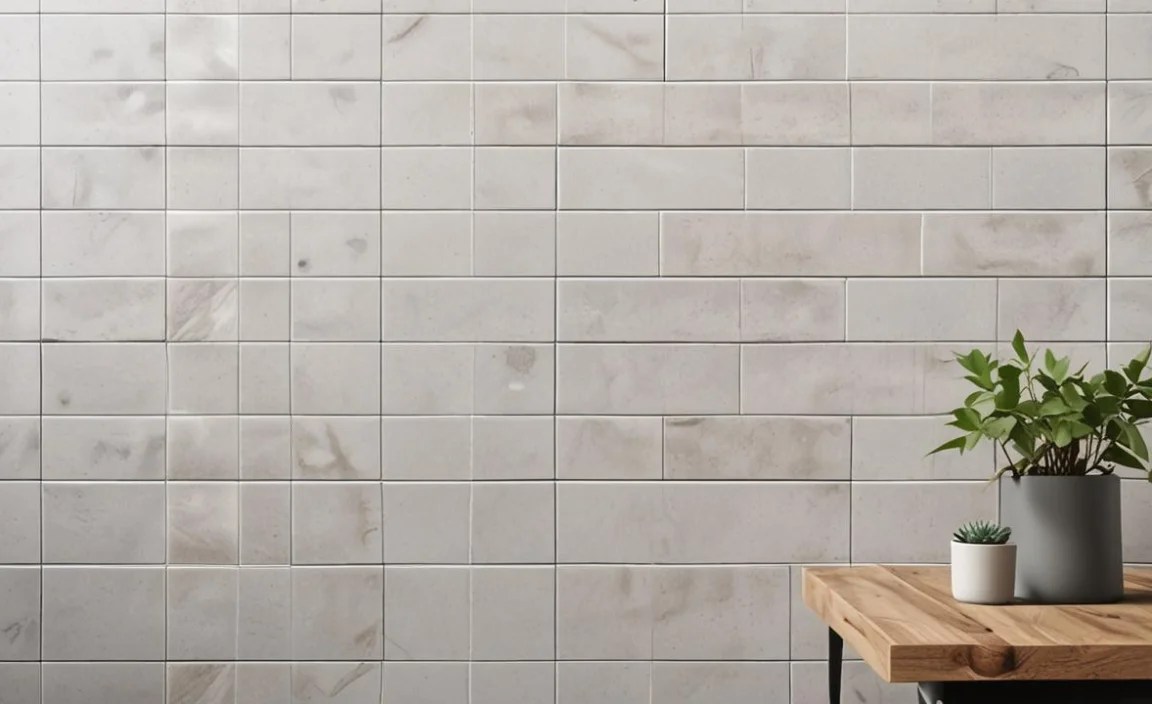

Pitfall 4: Not Enough Grout or Too Much
Problem: Under- or over-buying grout. Grout is usually sold by the bag, and while most are available in standard sizes, big projects can require multiple. Ordering too much means wasted money; too little means a trip back to the store.
Diagram Solution: Once you know the total square footage of your tiled area and the total length of all grout lines (which your diagram helps visualize), you can use online grout calculators or the information on the grout packaging to get a much more accurate estimate. Remember to account for waste.
Pitfall 5: Ignoring Substrate and Grout Type Compatibility
Problem: Using sanded grout in lines too narrow for it, which can cause cracking, or using unsanded grout for lines too wide, which can also lead to cracking or crumbling.
Diagram Solution: As you plan your grout line width on the diagram, make a note of the appropriate grout type based on that width. Always refer to the grout manufacturer’s recommendations. For more in-depth guidance on grout types, you can consult resources like The American Ceramic Tile Association (CTI).
Creating a Grout Diagram for Specific Tile Types
The type of tile you’re using will heavily influence your grout diagram and the overall grouting process.
For Ceramic and Porcelain Tiles
These are common choices for DIY projects. They generally have flat edges and predictable sizes.
Diagram Focus: Maintain very consistent grout line widths using tile spacers. For rectified tiles (those with very straight, sharp edges), aim for the narrowest possible grout lines (often 1/8 inch or less) for a modern, seamless look.
Grout Type: Typically sanded grout is used for lines 1/8 inch and wider. Unsanded grout is for lines smaller than 1/8 inch. Always check the grout manufacturer’s specifications.
For Natural Stone Tiles (e.g., Marble, Travertine, Slate)
Natural stone tiles offer unique beauty but can come with variations.
Diagram Focus: Plan for slightly wider grout lines (1/8 inch to 3/8 inch) to accommodate natural variations in tile thickness and edge straightness. Your diagram can help ensure these wider lines are still evenly spaced and visually appealing.
Grout Type: Sanded grout is usually recommended due to the wider grout lines.
Sealing is Crucial: Remember that natural stones are porous and will require sealing before and after grouting.
For Mosaics and Small Tiles
These often come on mesh sheets or interlocking designs.
Diagram Focus: If the mosaic tiles are pre-mounted on a mesh, the grout lines are largely dictated by how the sheets fit together. Your diagram might focus more on the grout lines between the sheets or around the edges of the mosaic area. If it’s a loose mosaic pattern you’re laying out, the diagram is critical for placement and spacing.
Grout Type: Often unsanded grout is used for the small gaps between individual mosaic tesserae, especially if the lines are very fine.
Grout Diagram Example: A Shower Niche
Shower niches can be tricky because you have multiple edges and corners. Let’s sketch a diagram for a simple niche—say, 12 inches wide by 18 inches high, with an internal depth of 4 inches, tiled with 4″x4″ ceramic tiles.
Niche Diagram Layout Considerations:
1. Area: The niche has four interior “walls” and a top and bottom surface.
2. Tile Size: 4″x4″ tiles.
3. Grout Line Width: Let’s aim for 1/8 inch.
4. Placement: Centering the tiles within the niche walls is key for a balanced look.
5. Inner Edges: The edges where the niche tiles meet the back of the niche or the surrounding wall need a clean finish.
Sketching the Diagram:
View from the front: Draw the 12″x18″ opening.
Internal Layout:
Width (12 inches): You can fit three 4″ tiles across (3 x 4″ = 12″). With 1/8″ grout lines between them, you have 2 grout lines x 1/8″ = 1/4″ of grout. Total space needed: 12″ + 0.25″ = 12.25″. If your niche is exactly 12″ wide, this means you’ll need very thin grout lines, or the edge tiles will need a slight trim, or the tiles won’t lay perfectly centered. Your diagram shows this potential issue. You might decide to use a narrow grout line or adjust how the tiles are laid out.
* Height (18 inches): You can fit four 4″ tiles high (4 x 4″ = 16″). This leaves 2 inches (18″ – 16″). With 1/8″ grout lines, you have 3 grout lines x 1/8″ = 3/8″ of grout. Total needed for tiles + grout: 16″ + 0.38″
